Needle Metal Detector Machine Industrial Textile Inspection System JZD-48

Alarm : audible and visual automatic stop

Price : $5,600

type : New

MOQ : 5

conveyor color : orange ,green or white (optional)

conveyor load : 7kg

customized support : OEM

warranty : 1 Year

power consumption : 180W

Place of Origin : China

conveyor speed : 22m/minutes(adjustable)

Contact Now

Needle Detector Machine JZD-48

Product Overview

The Needle Detector JZD-48 is designed for detecting various metal contaminants including needle breakage, steel wire, lead, copper, stainless steel, and other colored metals that may be present in raw materials and finished products.

Applications

Ideal for use in multiple industries including:

Toy manufacturing
Costume and garment production
Shoemaking industry
Chemical industry
Leather processing
Knitting and textile manufacturing
Bedding production
Aluminum packing products inspection

Key Features

High sensitivity with strong interference immunity
Lightweight structure for easy mobility
Multiple detection size specifications available
Adjustable conveyor speed for pipeline operations
Easy-to-disassemble conveyor belt for cleaning
Audible and visual alarm with automatic stop function

Technical Specifications

Parameter	Specification
Inspection Window Height	100-125-150-200 mm
Inspection Window Width	600 mm
Sensitivity	Φ1.0-2.0 mm steel ball (10 levels adjustable)
Power Consumption	140W
Dimensions	1950(L) × 1100(W) × 1200(H) mm
Weight	150 kg
Electrical Source	220V 50Hz

Product Gallery

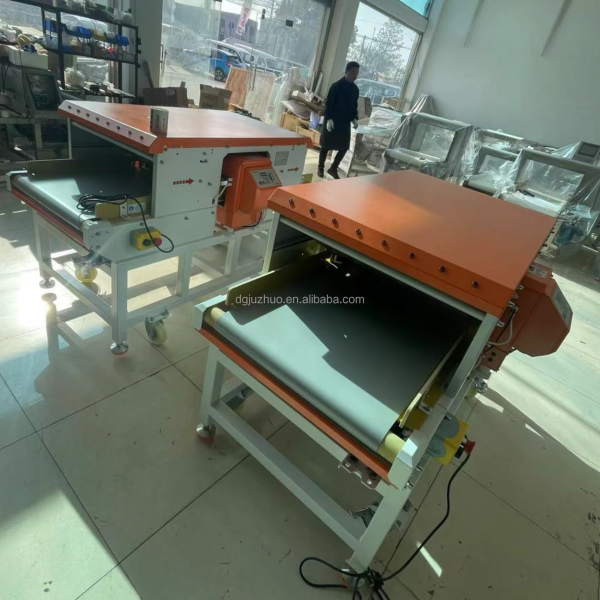

Needle Metal Detector Machine Industrial Textile Inspection System JZD-48
